TennaCAM 2.0 Heavy Equipment AI Camera System Overview
TennaCAM 2.0 Heavy Equipment AI is a complete safety camera system enabled with artificial intelligence to detect objects around your heavy equipment.

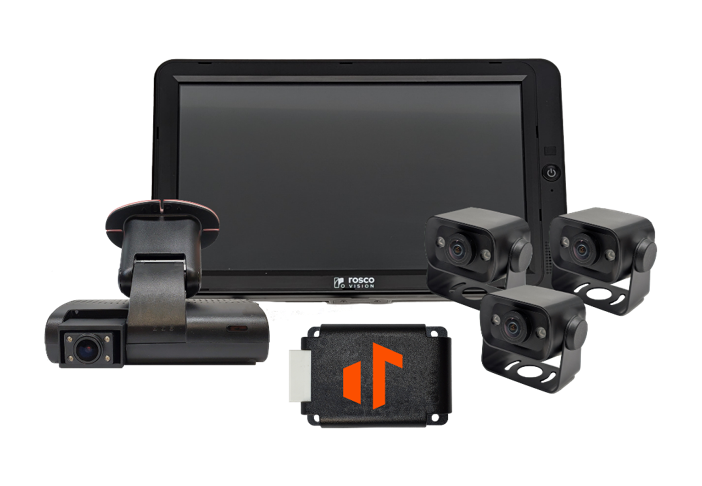

The TennaCAM 2.0 HE AI system includes:
- TennaCAM 2.0 Heavy Equipment dash camera
- (1) rear-facing TennaCAM 2.0 HE AI Auxiliary Camera
- (Optional) (2) side-facing TennaCAM 2.0 HE AI Auxiliary Cameras
- TennaCAM 2.0 HE AI Auxiliary Monitor
- TennaCANbus tracker
- Plus, necessary cables and accessories
Benefits:
- Option for 360° in-cabin view around heavy equipment assets
- In-cabin alerts generated by AI technology when people or objects are too close to an asset
- Improved visibility and safety for heavy equipment operators and surrounding people
Specifications
TennaCAM 2.0 Heavy Equipment Dash Camera
- Dual-facing full HD safety camera
- Front facing - Full HD 1080p HD, D116° x H100° x V56°
- Operator facing - Full HD 1080p D116° x H100° x V56°
- Industrial grade 128GB MicroSD card
- Independent aiming of operator-facing and front-facing cameras
- Operator/driver event button
- Infrared LED night vision
- Parking mode recording
- 4G LTE Modem
- 3-axis accelerometer
- Battery rundown protection
- Size – 5.09” L x 4.01” W x 2.41” H
TennaCAM 2.0 HE AI Auxiliary Cameras
- Size: 1.9” D x 3.3” W x 2.5” H
- Weight: 209 g / 7.4 oz
- Operating Temp Range: -4°F to 158°F
- IP68 rated durability
- Built-in heater for extreme cold conditions
- 720p, FOV (DHV): 130°, 137°, 71°
- Night vision IR LEDs
- Image mirroring capable
- Built-in audio
TennaCAM 2.0 HE AI Auxiliary Monitor
- 10.1” HD digital LCD color monitor
- Supports input resolution up to 1024x600p
- Split-view display mode
- Touch screen with gesture detection
- 1.5W speaker (must be enabled to hear in-cab alerts)
- 12V/24V compatible
