TennaMINI Solar Tracker Verification (Desktop)
The following are the criteria for verifying your TennaMINI Solar or TennaMINI 2.0 Solar after installation.
Important! A tracker is not considered active until tracker installation and verification has been completed. After installing the tracker and completing the steps in the Tenna App, the installer must verify the tracker on their desktop computer.
Tracker Verification provides you with confidence that your tracker was properly installed and is gathering accurate data at the time of installation.

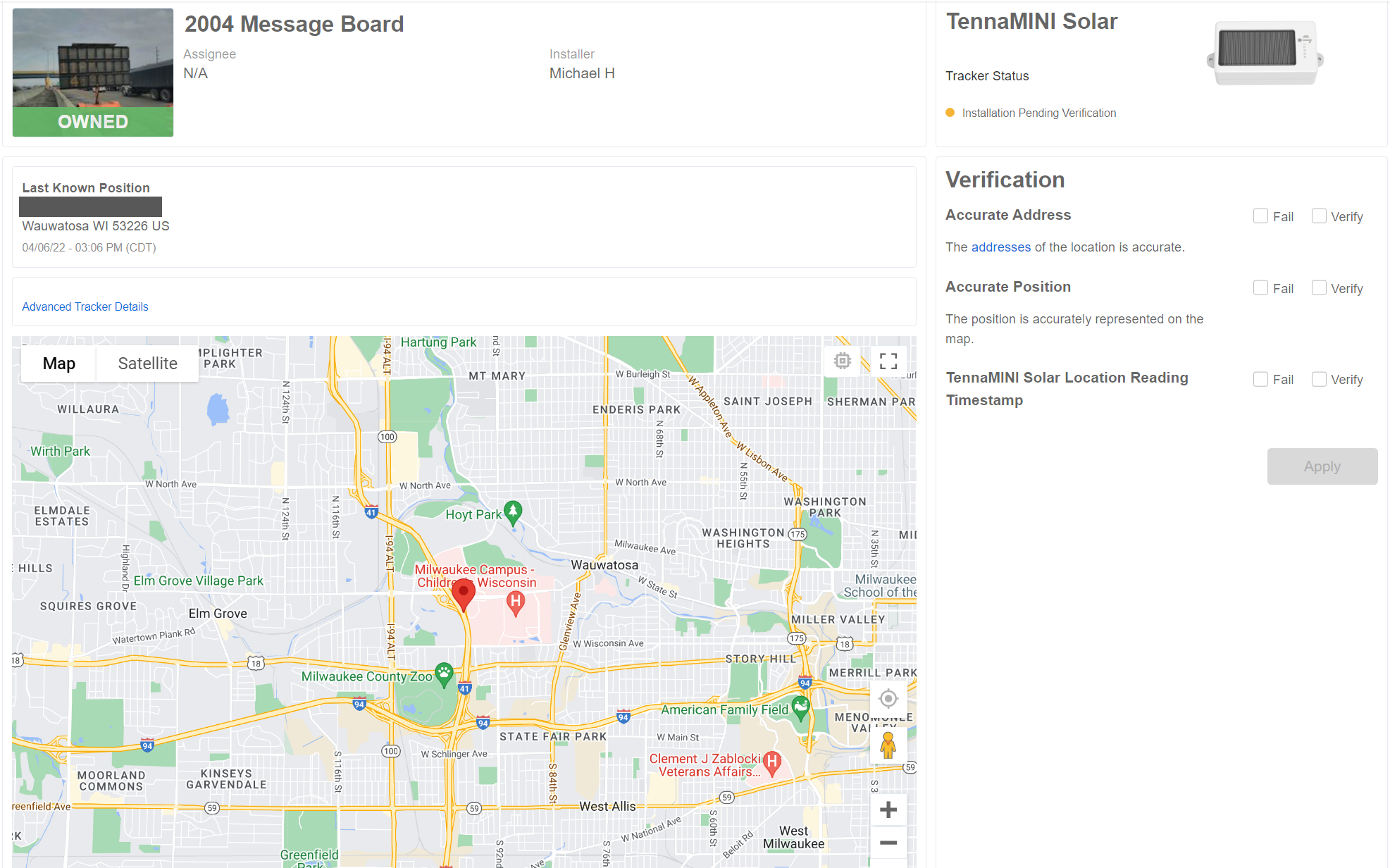

The left side of the Tracker Verification page will show tracker-specific information that will be used to verify accuracy:
Asset Information
- Asset Photo
- Asset Name
- Assignee
- Installer: User that installed the tracker. This will populate from the user that logged into the Tenna App and completed installation of this tracker.
Tracker Information
- Tracker Type
- Tracker Photo
- Tracker Status
Last Known Position: Address and timestamp of the tracker's last known position.
Advanced Tracker Details: Select the link for Advanced Tracker Details to view the associated tracker's firmware version, SKU, Serial No, and Config.
Map: Map displaying point of Last Known Position.
Verification Criteria
On the right side of the Tracker Verification page, users must complete the checklist of verification criteria by selecting Fail or Verify based on the information shown on the left side of the screen.
- Accurate Address: The trip start and trip end addresses are accurate.
- Accurate Position: The position of the asset is accurately represented on the map.
- Location Reading Timestamp: The timestamp of last known position is accurate.
Once all criteria has been verified or failed, select Apply at the bottom of the screen.
If all items are verified, the installation and verification is successful and the tracker is considered online and active.
If any items are failed, the installer will have to go through the Tenna App installation process again. Fix any identified issues and re-verify. View Why Can't I Verify my Tracker for troubleshooting.
