Virtual Superintendent Load Tracking Overview
Virtual Superintendent Load Tracking is automated load cycle and quantity tracking for your earth moving equipment. Load Tracking gives you production intelligence, including quantities moved, where they went, and what it cost.
đŸ’¥Virtual Superintendent Load Tracking is a premium product and requires a separate license. Please contact your Account Manager for more information on premium product licenses or reach out to Customer Support at help@tenna.com or call 888.836.6269.
In this article:
What Load Tracking Solves
No more paper load tickets, clipboard check-ins or end-of-week spreadsheets. Automated load data solves the pain of manual entry with fat-fingered data, lagged communication, and dispute delays. Just real-time, accurate load and dump cycle data captured automatically from the machine and broken into impactful segments.
- Visibility into load hauling and production activity tied to tracked assets.
- A clearer view of field progress for teams managing earthwork, hauling, or similar production workflows.
- Operational data that helps identify delays, bottlenecks, and utilization issues.
What Sets us Apart
With Load Tracking, TennaCANbus trackers are configured to report at 1Hz - a best-in-class configuration that sends a data point every second. This gives you an industry-leading frequency of data capture that gives you the full picture of your operation.
True, accurate and verifiable automated production data is only possible with 1Hz reporting - available to you only with Tenna trackers or John Deere machines.
Tenna > Virtual Superintendent Data Guide
Terminology between systems may differ. This guide details various Tenna fields and how they display in Virtual Superintendent.
| Tenna | Virtual Superintendent |
|---|---|
| Asset |
Asset User (in Maps) |
| Asset’s Fleet Number | Asset ID |
| Asset’s Serial Number | Secondary Asset ID |
| Site (with Project designation) | Job |
| Geofence (Master/Level 1) | Geometry |
Key Terms in Virtual Superintendent
- Cycle: In terms of load tracking, a Cycle in Virtual Superintendent refers to one load, haul, dump and return.
- Disposal or Dump: When the truck emptied.
- Hauler: The truck being counted.
Important! Assets must be set as a Load Count - Hauler in settings. View How to Configure Virtual Superintendent Load Tracking for more details.
- Load: When the truck was filled.
- Loader: Machine filling the truck (typically a excavator or wheel loader, for example)
Important! Assets must be set as a Load Count - Hauler in settings. View How to Configure Virtual Superintendent Load Tracking for more details.
The Anatomy of a Cycle in Virtual Superintendent Load Tracking
A cycle in Virtual Superintendent differs from a traditional cycle in Tenna. A cycle in Virtual Superintendent runs from one "Load At" to the next "Load At".

The Haul is the time from Load > Dump.
The Return is the time from Dump > Next Load.
The last load of a shift has no Cycle time (because there is no next load to measure to).
Each of these Cycles are shown in the Load Count Report.

How to View Load Tracking Data

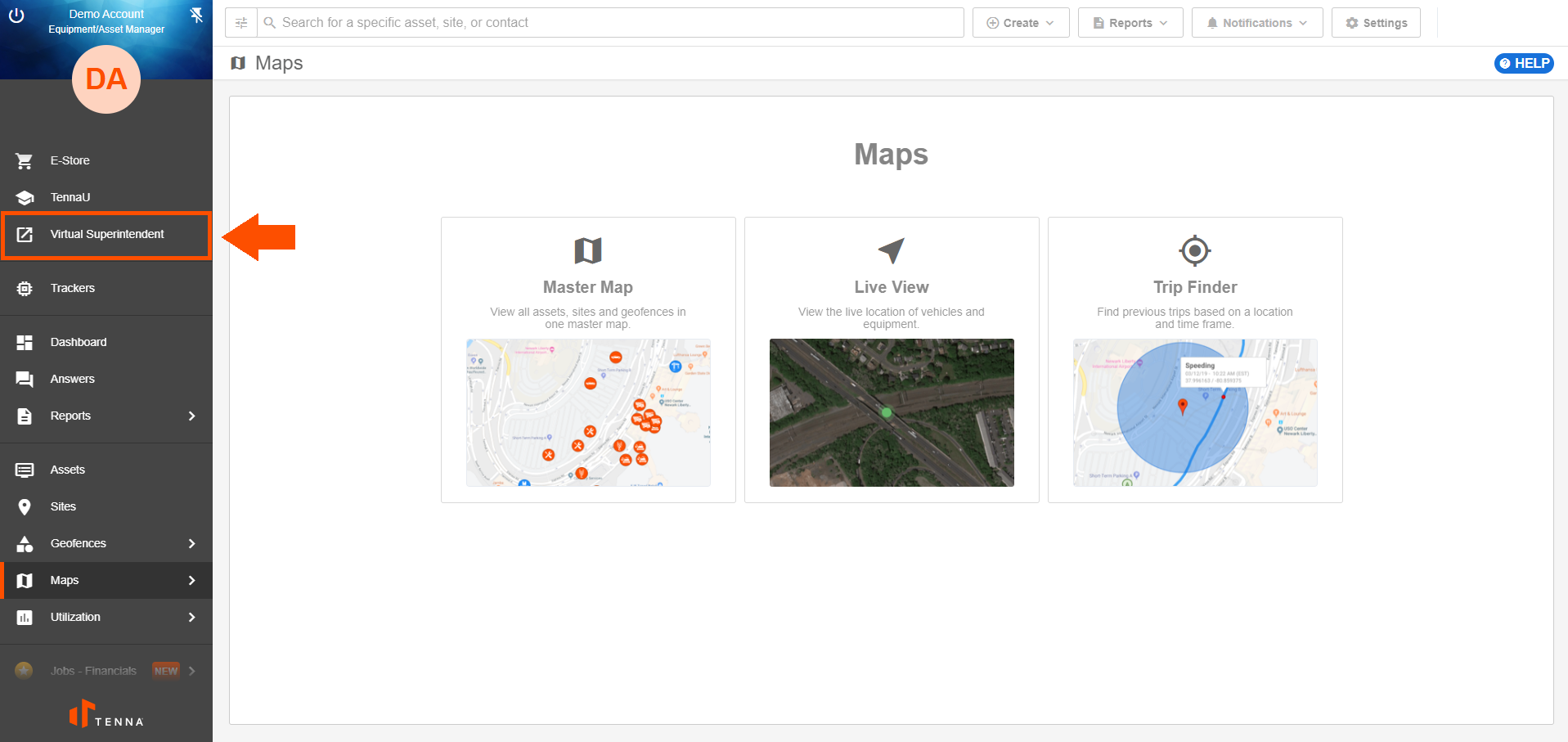

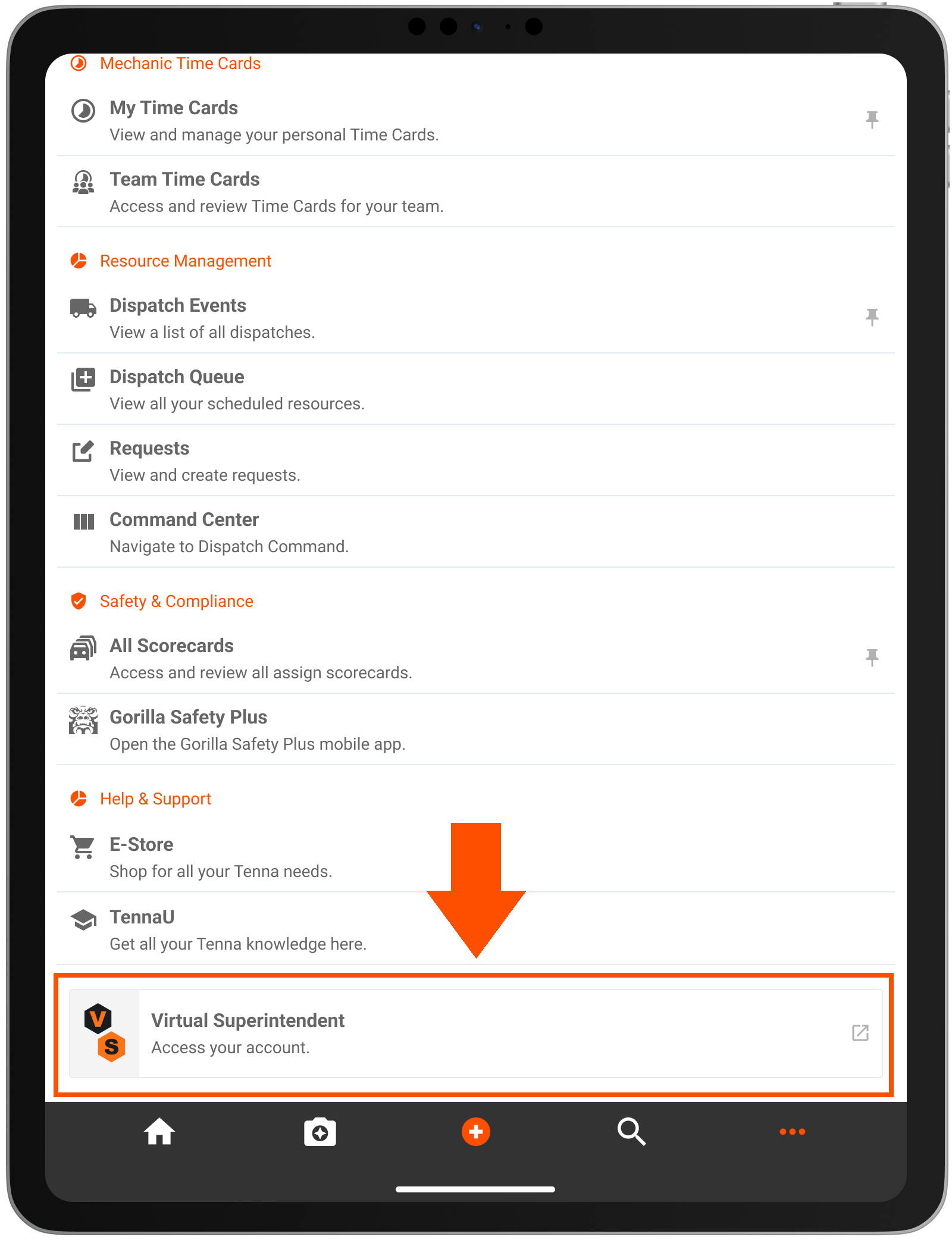

From Tenna on your desktop or tablet, click Virtual Superintendent.


Note: Licensed users will automatically be signed in to Virtual Superintendent via SSO.
Virtual Superintendent includes the following pages:
VS Jobs

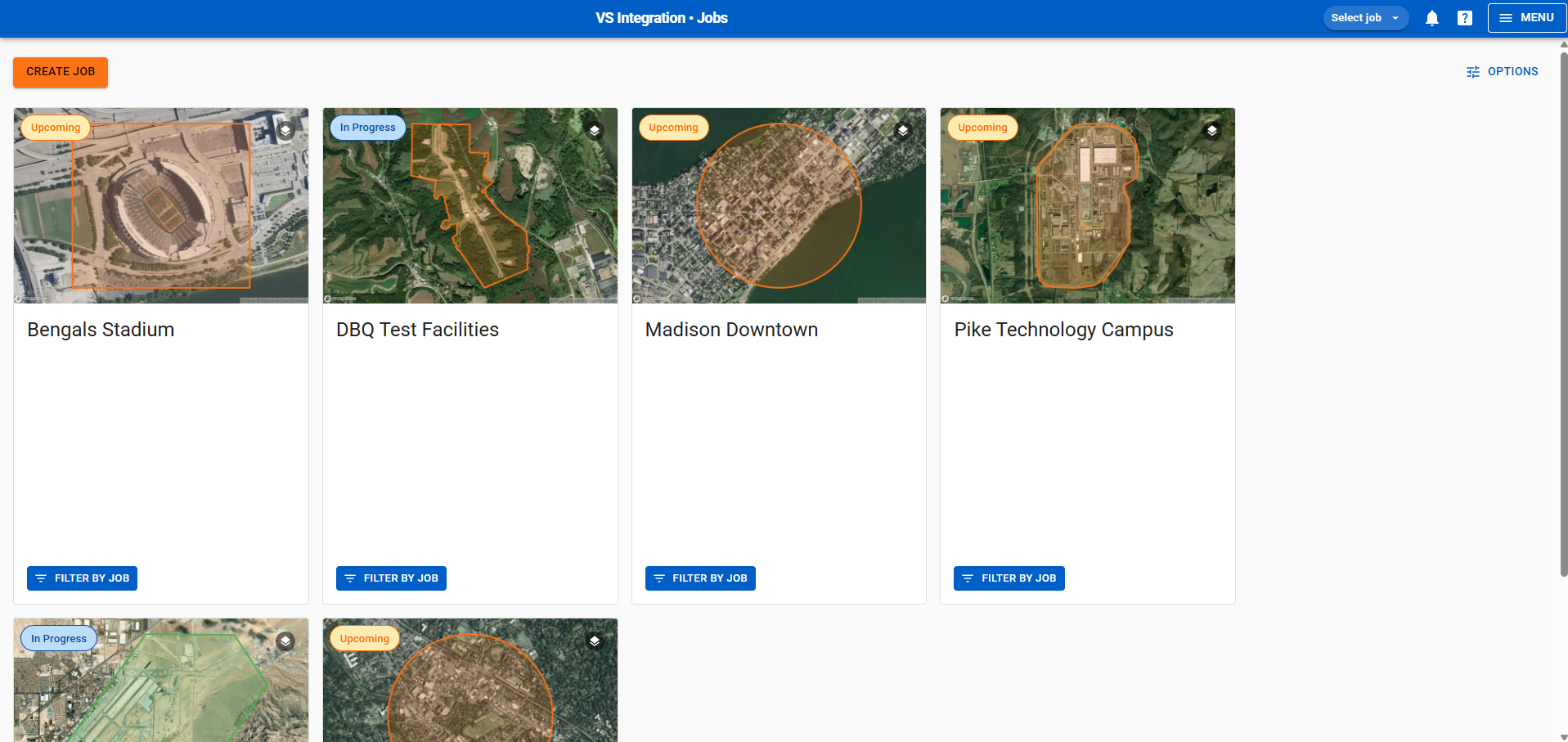

Important! The Virtual Superintendent Jobs page will show all of your Tenna Sites.

VS Maps

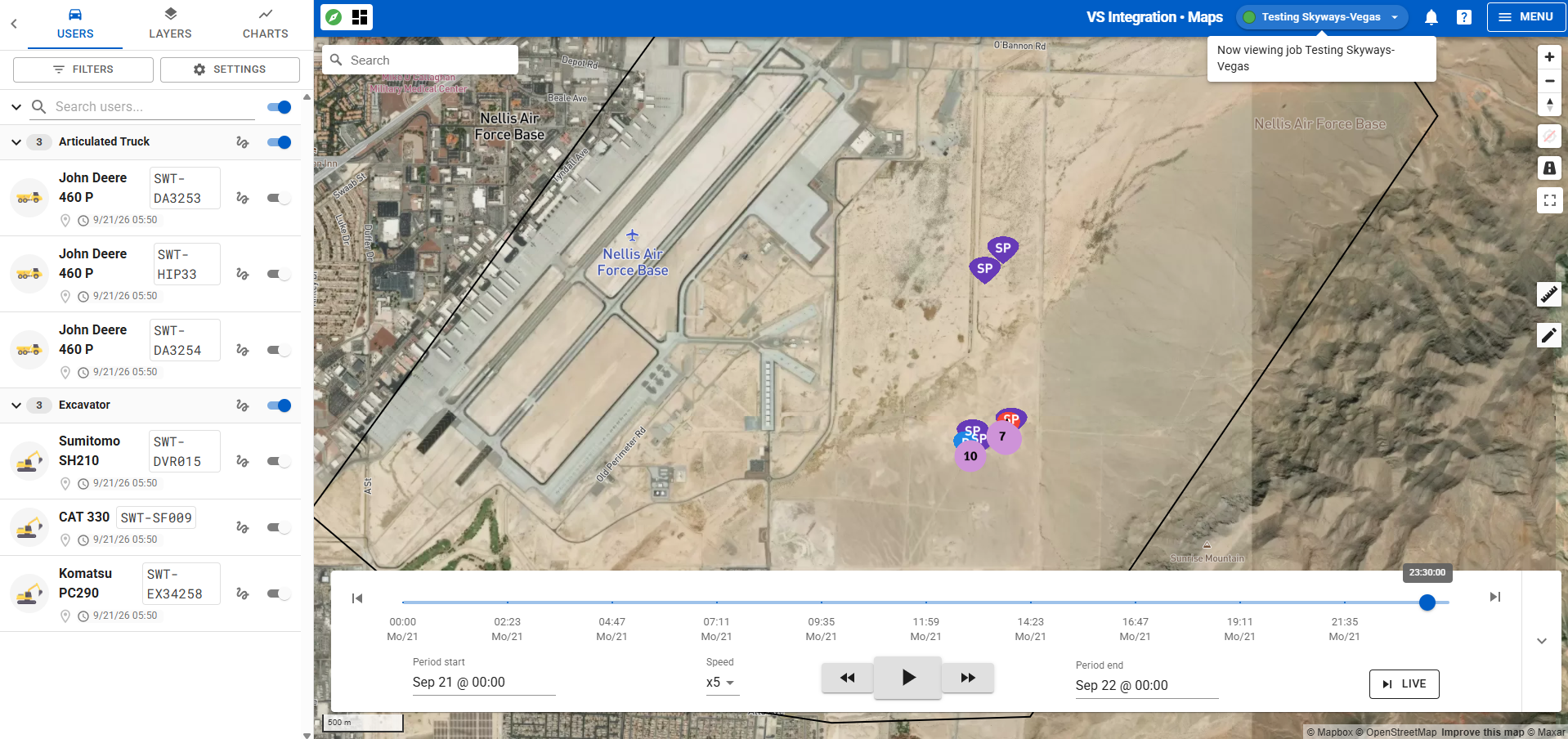

The Maps page provides an interactive bird's eye view of your production site, combining real-time and historical data for plant equipment, personnel, events, and productivity.

VS Asset Status
The Asset Status page provides users with a live overview of all asset activity on a project. The page displays each machine's status in a grid view, making it easy to monitor asset availability and activity across the site.

Load Count Report

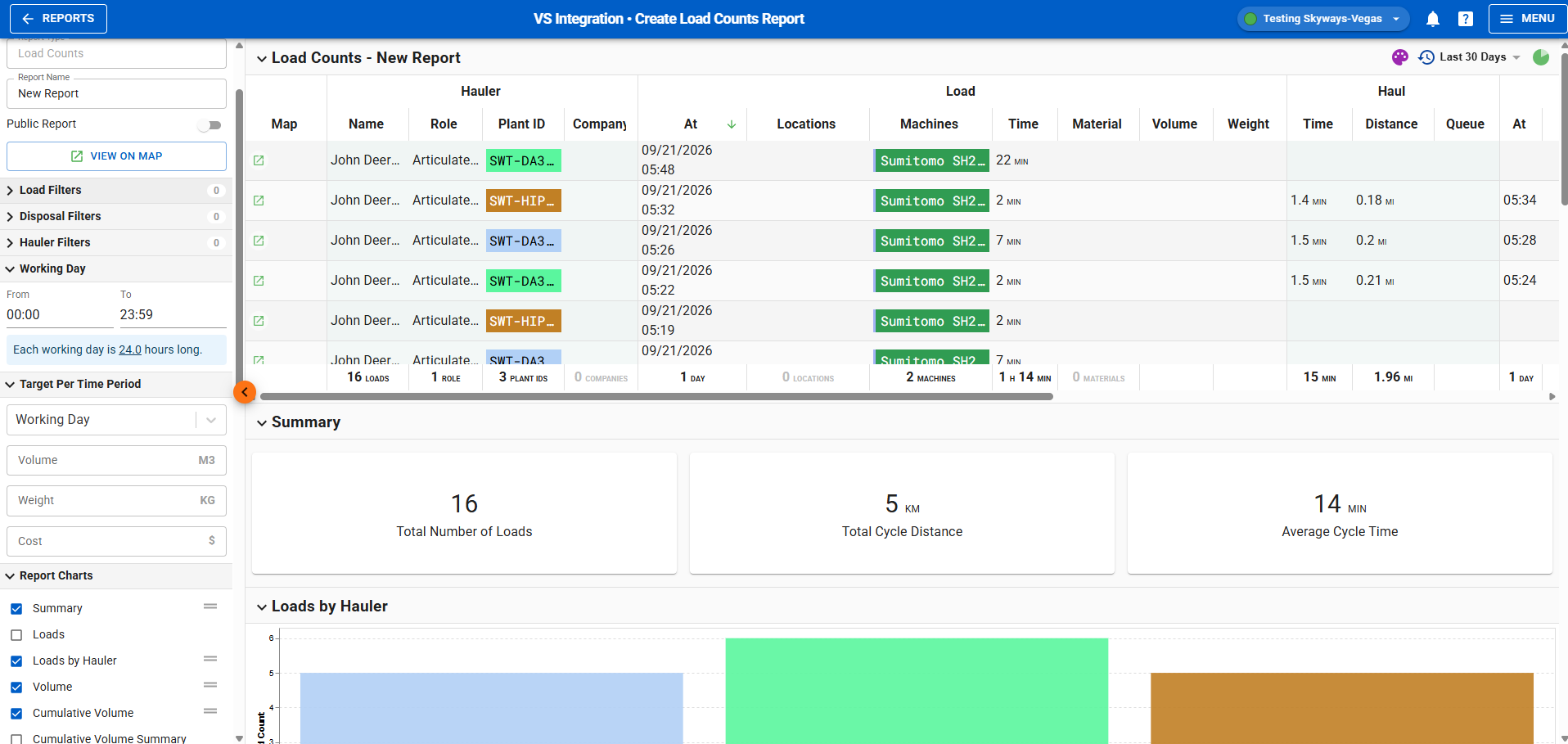

Load Count reports provide information about loading, hauling, dumping, and return activities recorded in your project.
Use Load Count reports to monitor production rates, analyze cycle performance, and track project costs.

VS Setup
VS Assets
The Assets page is a grid of all assets in your Virtual Superintendent account. From here, you can view and edit individual asset details, like load count role and payload.

VS Map Layers
Use the Map Layers page to import and manage custom map tiles and then display these tiles as supplementary layers on the main map.
